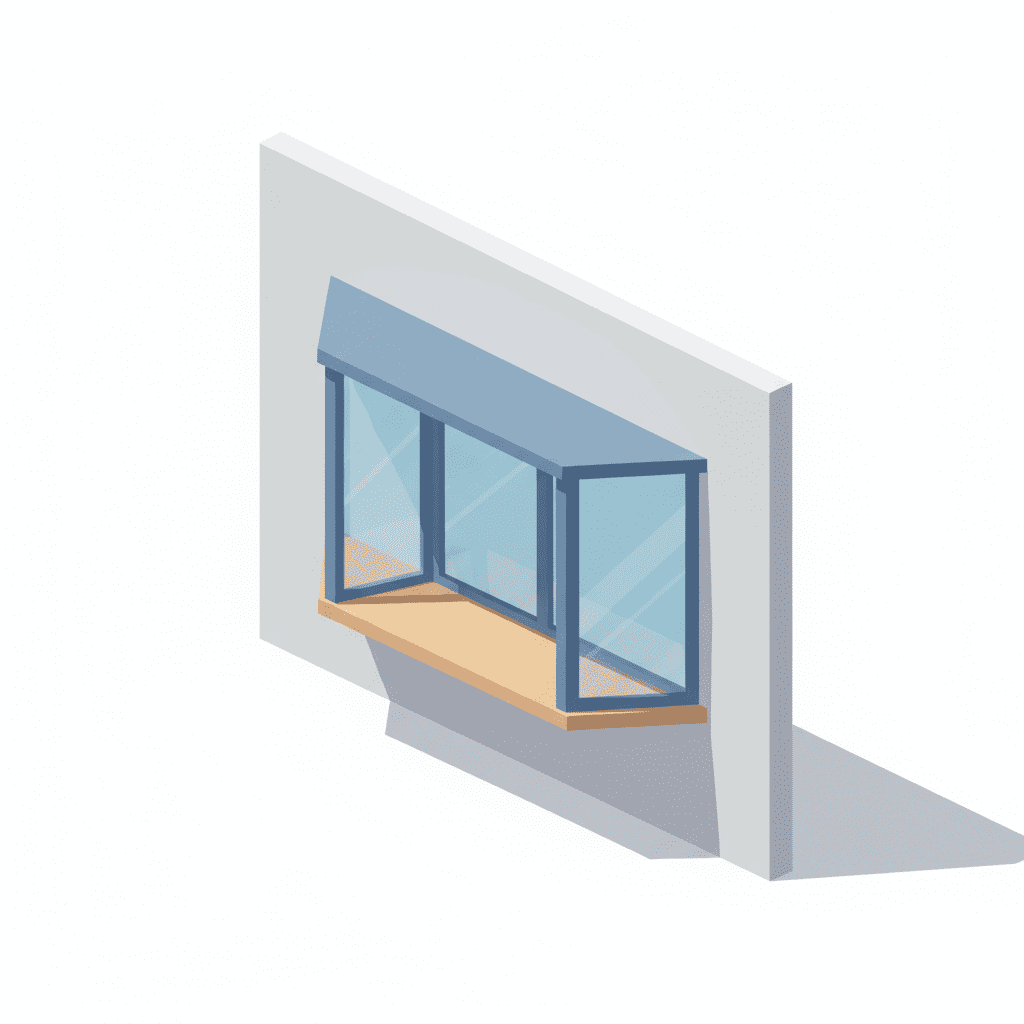

Bay Window

A bay window extends beyond the main exterior wall of a home, creating a recessed interior space — a “bay” — that adds usable floor area, visual interest, and additional natural light. The classic bay window consists of three panels: a large center window (usually fixed or double-hung) flanked by two angled return windows at 30°, 45°, or 90° to the wall. The return windows can be casement, double-hung, or fixed depending on ventilation needs.

Bay vs. Bow Window

Bay and bow windows are often confused. The key differences:

• Bay window — typically 3 panels, with angled sides creating a faceted projection. More angular and architectural.
• Bow window — 4 to 6 panels arranged in a gentle curve, creating a rounded projection. Softer, more traditional appearance.

Structural Considerations

Bay windows require structural support because they extend beyond the foundation. They must be supported from below (with a cantilever or knee wall) or suspended from above with structural brackets. Improper support is the leading cause of bay window failure — the window unit sags, joints open, and water infiltration follows. Always verify structural support before installing or replacing a bay window.

Bay Window Seat

The floor space created by a bay projection is often finished as a window seat — a built-in bench with storage below. This is one of the most popular interior design features in older American homes.

Common Bay Window Problems

• Sagging — inadequate structural support; requires adding knee wall or cable support
• Roof leaks — bay windows have their own small roof section (hip or flat); flashing failure leads to leaks into the bay ceiling
• Seat board rot — the horizontal seat board is exposed to condensation from glass above; wood versions rot without proper sealing
• Failed IGU seals — same as any double-pane window; the side units are particularly prone to seal failure due to temperature extremes at the angled joints

Replacement Cost

Bay window replacement is significantly more expensive than standard window replacement due to the structural work, roofline, and custom sizing. Expect $2,500–$6,000 for a typical 6-foot bay window including installation in the Columbus area.
