Rough Opening

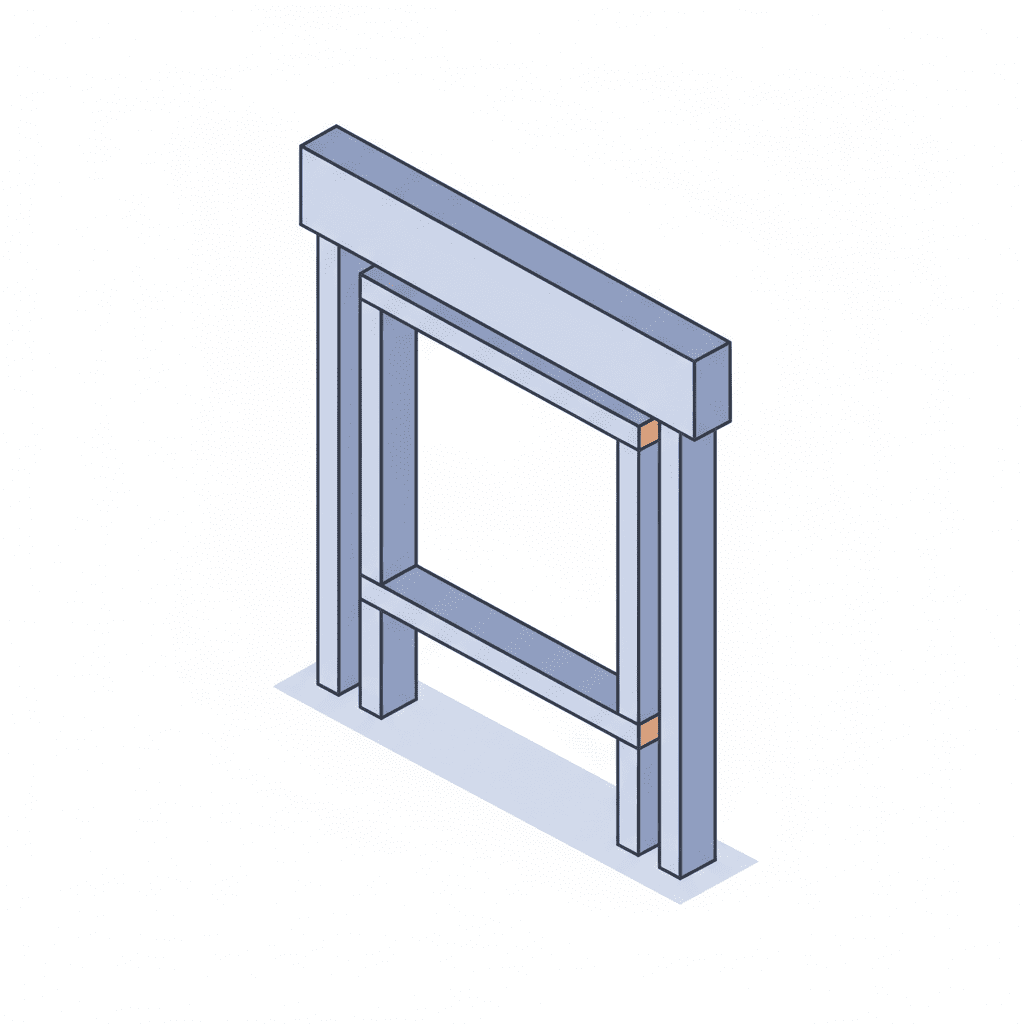

The rough opening (RO) is the framed hole in the wall structure — bounded by a header above, a sill plate below, and two jack studs on the sides — into which a window unit is set and fastened. The rough opening is intentionally larger than the window’s nominal or actual frame size, typically by ½ inch to ¾ inch on each side, to allow the installer to plumb, level, and square the window using shims before securing it permanently.

Rough Opening Dimensions

Manufacturers specify the required rough opening for each window model. As a general rule:

• Add ½ inch to each side of the window width (total +1 inch to width)
• Add ½ inch to the window height
• Example: a 36×48-inch window (nominal) needs a rough opening of approximately 37½ × 48½ inches

Always use the manufacturer’s spec sheet — not a general rule — for precise dimensions, as it varies by product line and installation method.

Rough Opening Components

• Header — a horizontal beam spanning the top of the opening, carrying the structural load from above; size depends on opening width and load
• Jack studs (trimmer studs) — vertical studs on each side that support the header ends
• King studs — full-length studs outside the jack studs, providing lateral stability
• Rough sill — horizontal framing member at the bottom of the opening
• Cripple studs — short studs below the rough sill and above the header

Rough Opening and Window Replacement

During window replacement, the existing rough opening may already exist and be the correct size. For insert (pocket) replacement, the window frame stays and the rough opening is not exposed. For full-frame replacement, the rough opening is exposed and inspected for rot, damaged framing, and failed flashing before the new window is set.
