Triple-Pane Window: Definition & Meaning

Triple-Pane Window

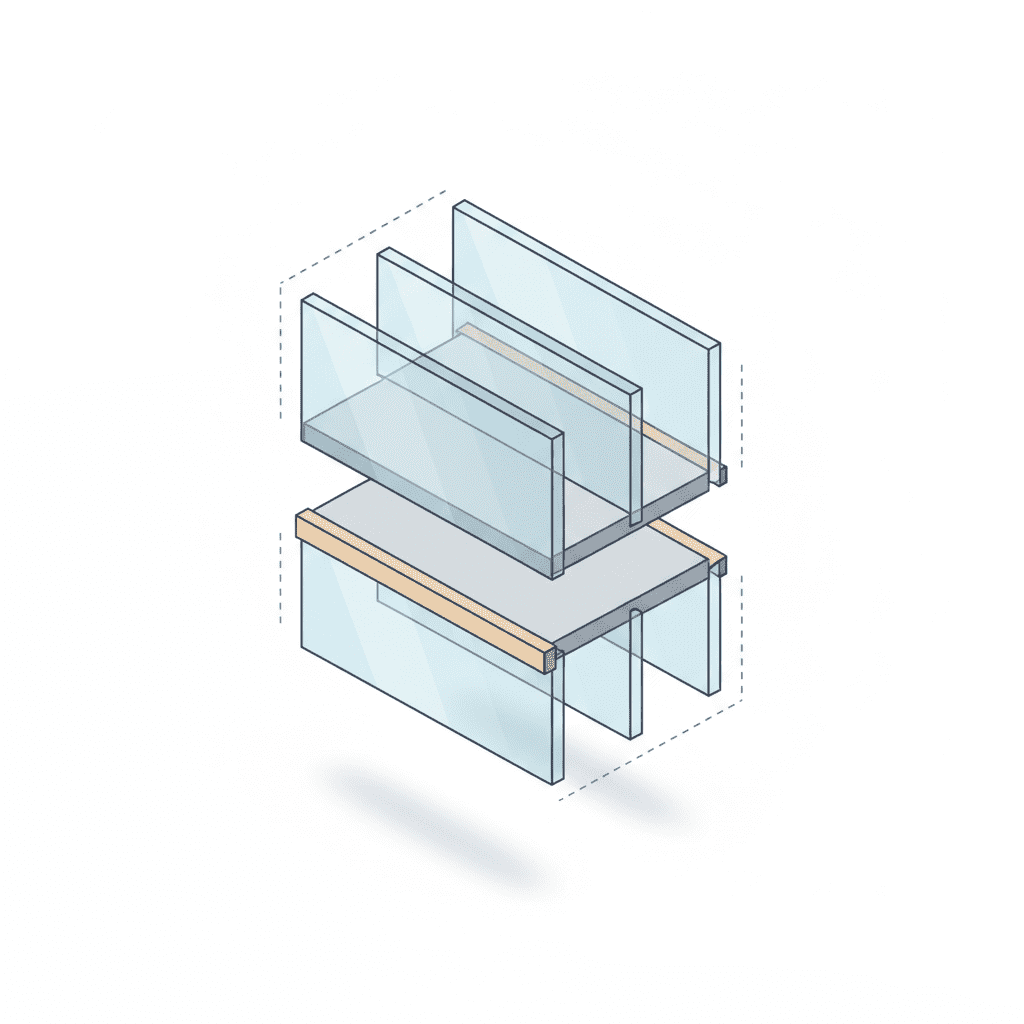

A window with three parallel glass panes and two insulating gas-filled cavities, offering superior thermal performance over double-pane units at a higher cost.

2 min read · Updated March 2026

Definition

A window with three parallel glass panes and two insulating gas-filled cavities, offering superior thermal performance over double-pane units at a higher cost.

A triple-pane window adds a third glass pane and a second sealed gas cavity to the standard double-pane insulated glass unit. The result is a window with R-values typically between R-5 and R-7 — roughly double the insulation of a good double-pane unit — along with significantly better sound attenuation and near-elimination of cold-edge condensation.

Triple-Pane vs. Double-Pane: Performance

Metric	Double-Pane (Low-E + Argon)	Triple-Pane (Low-E + Argon)
U-factor	0.25–0.30	0.15–0.20
R-value	R-3.3 to R-4	R-5 to R-6.7
Sound reduction	Moderate (28–32 STC)	Good (32–38 STC)
Weight (per sq ft)	~3.5 lbs	~5 lbs
Cost premium	Baseline	+$100–$200 per window

Is Triple-Pane Worth It in Ohio?

For most Columbus-area homes, the answer is: sometimes. Triple-pane makes clear economic sense when:

You are replacing windows in a very well-insulated house (the windows become the weak link)
You have large north-facing windows with significant heat loss
Noise reduction from a busy street is a priority
You plan to stay in the home 15+ years to recover the premium cost

For average Ohio homes replacing standard windows, high-quality double-pane Low-E units offer 90% of the benefit at 70% of the cost.

Triple-Pane Considerations

The added weight of triple-pane IGUs stresses window hardware — balances, hinges, and locks — more than double-pane units. Ensure the window frames and hardware are rated for the additional weight. Also, the additional glass layer reduces visible light transmittance by roughly 10% compared to double-pane.
